Juice Conical Barrel

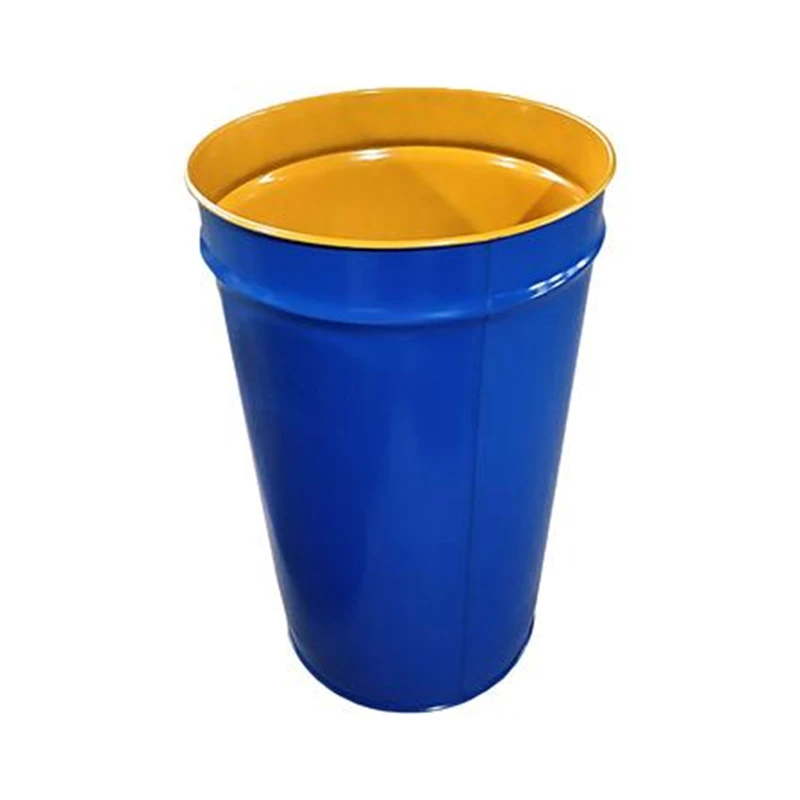

Our juice conical barrel undergoes a 100% spark pinhole test. This test is a critical step in our production process. We place it after coating curing and before final packaging. Every single drum goes through the testing channel. If the machine detects any pinhole defect, we remove that drum immediately. It will not enter our finished goods warehouse. This is our final quality checkpoint for food-grade products. Our juice conical barrel has a capacity of 220 liters. The wall thickness is not less than 1.0 millimeter. The inner coating is 8 to 12 microns thick. It uses food-grade epoxy phenolic material that meets food contact standards.

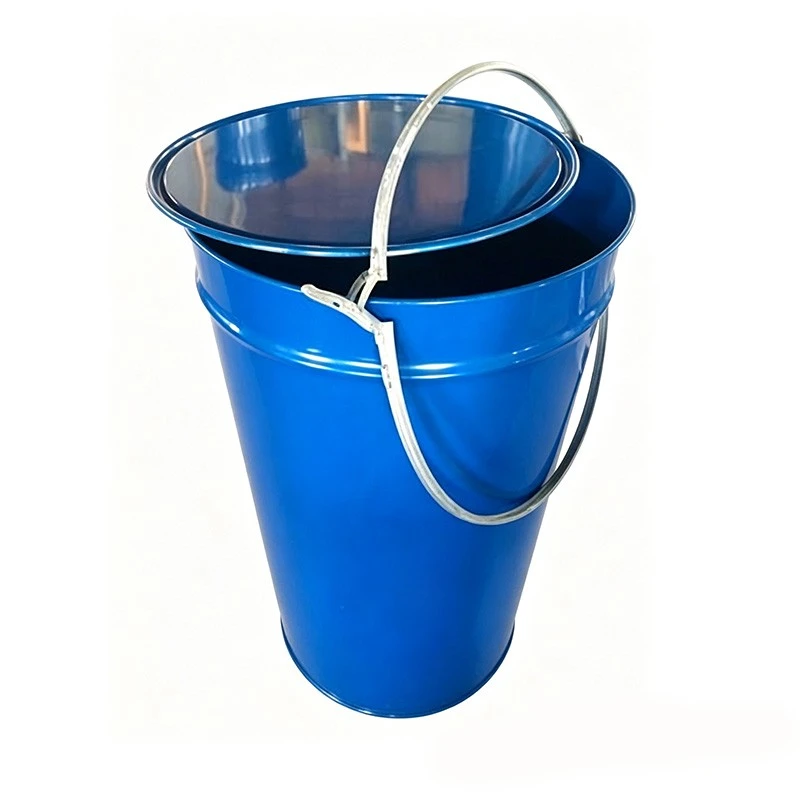

This juice conical barrel is specifically designed for acidic juice materials. The coating performs stably within a pH range of 2.5 to 4.5. It will not release heavy metals or plasticizers into your juice. The open-top structure comes with a closing ring. The lid opens and closes with ease. The food-grade silicone gasket provides reliable sealing. No leakage occurs during transit. The bottom has a small vent hole. This allows air to escape during filling. The outer surface has an anti-rust paint coating. The film thickness is 15 to 20 microns. This provides effective rust protection.

Nongfu Spring, Huiyuan Juice, and Shaanxi Haisheng Fruit are our long-term partners. These companies conduct strict supplier reviews every year. Our juice conical barrel consistently passes their tests. This proves our production consistency. We support OEM and ODM customization. MOQ is 2,000 units. Free samples are available. Mass production takes about 10 days. We offer one-year warranty. We accept third-party inspections. We support EXW, FOB, and DDP trade terms. We accept USD, EUR, and GBP for payment.
